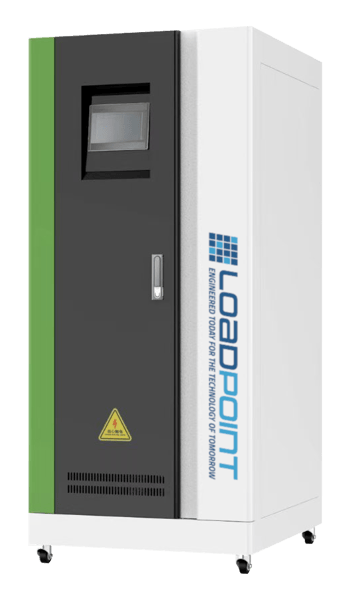

DWG200 Deionized water generator
The DWG200 Deionized (DI) Water Generator provides a reliable and cost-effective source of high-purity deionized water for semiconductor manufacturing, wafer dicing, wafer cleaning, electronics production, laboratories, and other precision industrial applications.
Designed for continuous operation, the system combines advanced water purification technologies to remove dissolved ions, minerals, and contaminants, ensuring a stable supply of high-quality DI water for critical manufacturing processes. By generating purified water on-site, manufacturers can reduce operating costs, improve process consistency, and eliminate the need for externally supplied deionized water.
Specification
| Water purity/resistivity (MΩ·cm) | 18.25MΩ·cm @25℃ |

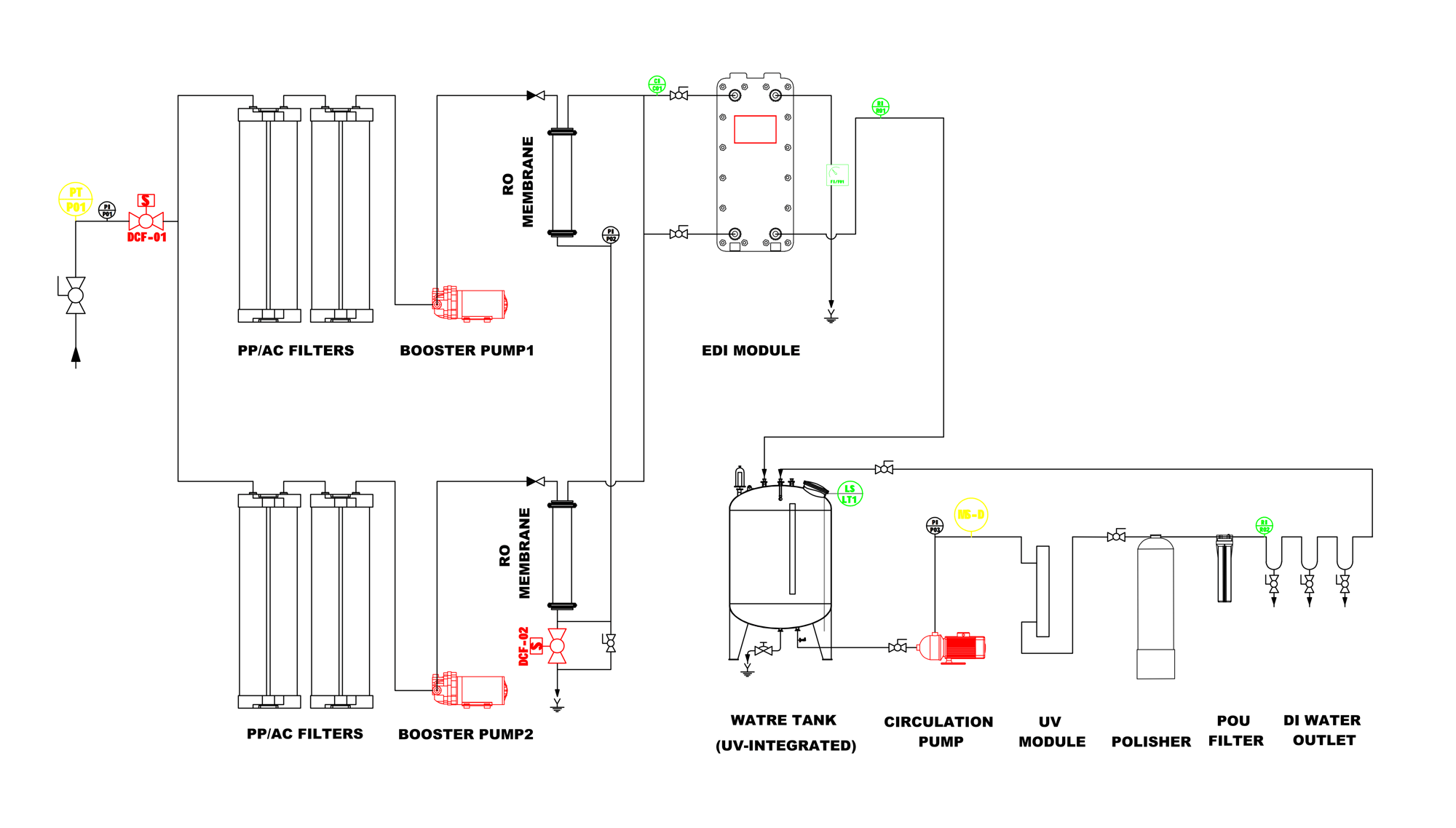

| Water purification process | Pre-treatment + Single-Pass Reverse Osmosis (RO) + Electrodeionization (EDI) + Polishing Resin Column + UV Sterilization |
| Production rate (L/h) | 200 - 300L/h |
| Feed water requirements | Tap water |
| Tank capacity | 300L |
| Power Supply | AC 230V 50 Hz, single-phase |
| Weight | 260Kg |
| Dimensions （W x D x H） | 750 x 850 x 1620mm |
Features
| On-demand production of high-purity deionized water |
| Compact footprint for easy installation alongside production equipment |
| Fully automatic operation with intelligent system monitoring |
| Multi-stage purification technology for consistent water quality |
| Integrated conductivity and water quality monitoring |
| Automatic flushing functions to extend filter and membrane life |
| Low-maintenance design with easy cartridge replacement |
| Continuous supply for production and laboratory applications |
| Industrial-grade construction for long-term reliability |
