Dicing and Backgrinding Tapes
Loadpoint offer a variety of dicing tapes sourced from leading manufacturers to suit a variety of applications.
Tapes include but are not limited to; low cost general purpose blue tape, semiconductor grade tape, UV tapes & backing tapes.
6033/6034 – Low cost dicing tape - General purpose blue tape
- General purpose, Non-UV, PVC base film with acrylic adhesive
- Base (µm) = 75
- Adhesive (µm) = 10
- 6033 – Low Tack or 6034 – Low/Medium Tack
General purpose wafer dicing applications, low cost alternative to 6000 Series
| Coated Type | Single | |
| Acrylic Type | non-UV Curable | |
| Total Thickness | 75µm | |
| Base Film | Material | PVC |
| Colour | Blue | |
| Adhesive Layer | Material | Acrylic |
| Adhesion Strength (To Steel) |
6033=95N/20mm 6034 = 110N/20mm |
|
| Tensile Stength (MD*) |
6033= 50N/20mm 6034 = 50N/20mm |
|
| Tensile Elongation (MD*) |
6033= MD - 240% 6034 = MD - 240% |
|
*MD = Machine Direction
The 6033 and 6034 dicing tapes comprise of a PVC base with a non-UV acrylic adhesive and are suitable for general purpose wafer dicing
applications.
Available with two base film thicknesses (80µm and 100µm).
The 6033 and 6034 are low cost
alternatives.
- General purpose, non-UV
- Semiconductor grade, non-UV
- UV Curable, PET, PO or PVC base films
- Special applications for ceramics
- Special tapes for thick substrates and hard to cut materials
- Green Layering tape

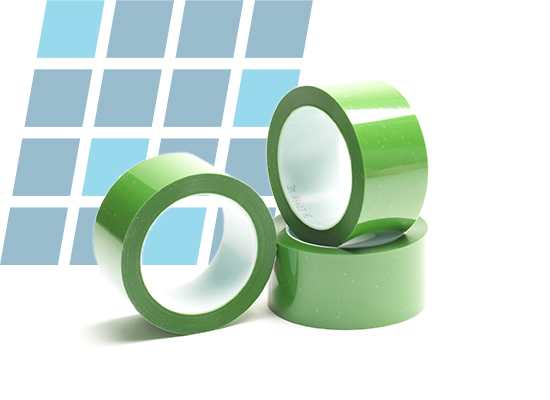

5000 Series – Green layering tape
- Green layering tape, polyester base film with silicone/rubber adhesive
- Base (µm) = 40
- Adhesive (µm) = 20
- 1040 – 20
Applied directly to the back of the substrate to create additional dicing depth
| Coated Type | Single | |
| Acrylic Type | non-UV Curable | |
| Total Thickness | 60µm | |
| Base Film |
Material | Polyester |
| Colour | Green | |
| Thickness | 40µm | |
| Adhesive Layer |
Material | Silicone |
| Thickness | 20µm | |
| Adhesion Strength (To Steel) |
7.25N/25mm |
|
| Tensile Strength (MD*) |
201.5N/25mm |
|
| Tensile Elongation (MD*) |
150% |
|
The 5000 series comprises of a PVC base with a non-UV acrylic adhesive and is used for dicing glass and ceramic substrates. 5000 series tape is applied directly to the backface of the substrate, in one or two layers, to provide extra tape thickness to avoid the effects of blade wear. 5000 series is used in conjunction with 6033/6034 tapes and provides a good alternative to wax mounting.
- General purpose, non-UV
- Semiconductor grade, non-UV
- UV Curable, PET, PO or PVC base films
- Special applications for ceramics
- Special tapes for thick substrates and hard to cut materials
- Green Layering tape

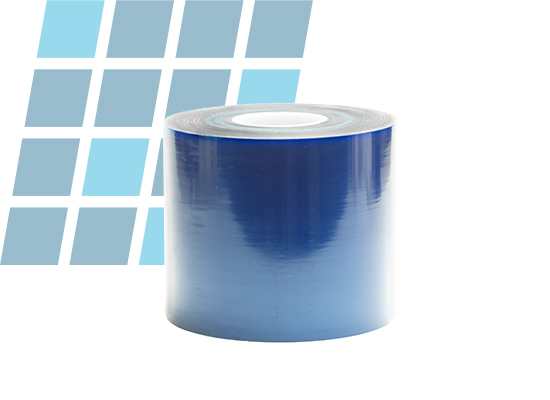

6000 Series – Semiconductor grade dicing tape
- Semiconductor grade, non UV dicing tape, PVC base film with acrylic adhesive
- Base (µm) = 80 or 100
- Adhesive (µm) = 10
- 6080 – 10 or 6100 – 10
- General cleanroom wafer applications
| Coated Type | Single | |
| Acrylic Type | non-UV Curable | |
| Total Thickness | 90µm or 110µm | |
| Base Film |
Material | PVC |
| Colour | Clear / Blue | |
| Thickness | 80µm or 100µm | |
| Adhesive Layer |
Material | Acrylic |
| Thickness | 10µm | |
| Adhesion Strength (Glass Plate) | Before UV |
6080-10 = 1N/25mm |
| After UV |
/ |
|
| Adhesion Strength (Acrylic Plate) | Before UV |
6080-10 = 1N/25mm |
| After UV |
/ |
|
| Tensile Strength |
6080-10 = MD - 40MPa TD - 30MPa |
|
| Tensile Elongation |
6080-10 = MD - 620% TD - 670% |
|
*MD = Machine Direction *TD = Transverse Direction
The 6000 series comprises of a PVC base with a non-UV acrylic adhesive and is a semiconductor grade dicing tape suitable for general purpose wafer dicing applications. Available with two base film thicknesses (80µm and 100µm) and with a choice of clear or blue. The 6000 series is particularly suitable for higher volume applications that require a cost-effective tape option.
- General purpose, non-UV
- Semiconductor grade, non-UV
- UV Curable, PET, PO or PVC base films
- Special applications for ceramics
- Special tapes for thick substrates and hard to cut materials
- Green Layering tape

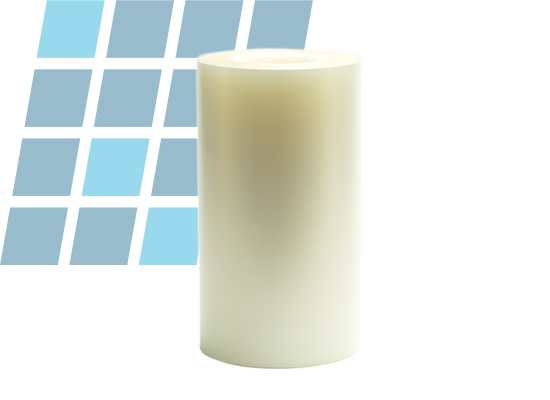

7000 Series – UV dicing tape
- UV dicing tape, various options
- Base film type (s) = PVC or PO
- Base film = 95µm to 270µm
- Adhesive = 10µm to 25µm
- Adhesion level (s) = various (*ask for details)
- General cleanroom wafer applications
| Coated Type | Single | |
| Acrylic Type | non-UV Curable | |
| Total Thickness | 90µm or 110µm | |
| Base Film |
Material | PVC |
| Colour | Clear / Blue | |
| Thickness | 80µm or 100µm | |
| Adhesive Layer |
Material | Acrylic |
| Thickness | 10µm | |
| Adhesion Strength (Glass Plate) | Before UV |
6N/25mm |
| After UV |
0.25N/25mm |
|
| Adhesion Strength (Acrylic Plate) | Before UV |
7080-10 = 5N/25mm |
| After UV |
7080-10 = 0.3N/25mm |
|
| Tensile Strength |
7080-10 = MD* - 40MPa TD* - 30MPa |
|
| Tensile Elongation |
7080-10 = MD - 740% TD - 760% |
|
*MD = Machine Direction *TD = Transverse Direction
The 7000 series comprises of a PVC base with a UV sensitive acrylic adhesive and is suitable for general purpose wafer dicing applications. Available with two base film thicknesses (80µm and 100µm) and with a choice of clear or blue. The 7000 series is particularly suitable for higher volume applications that require a cost-effective tape option.
