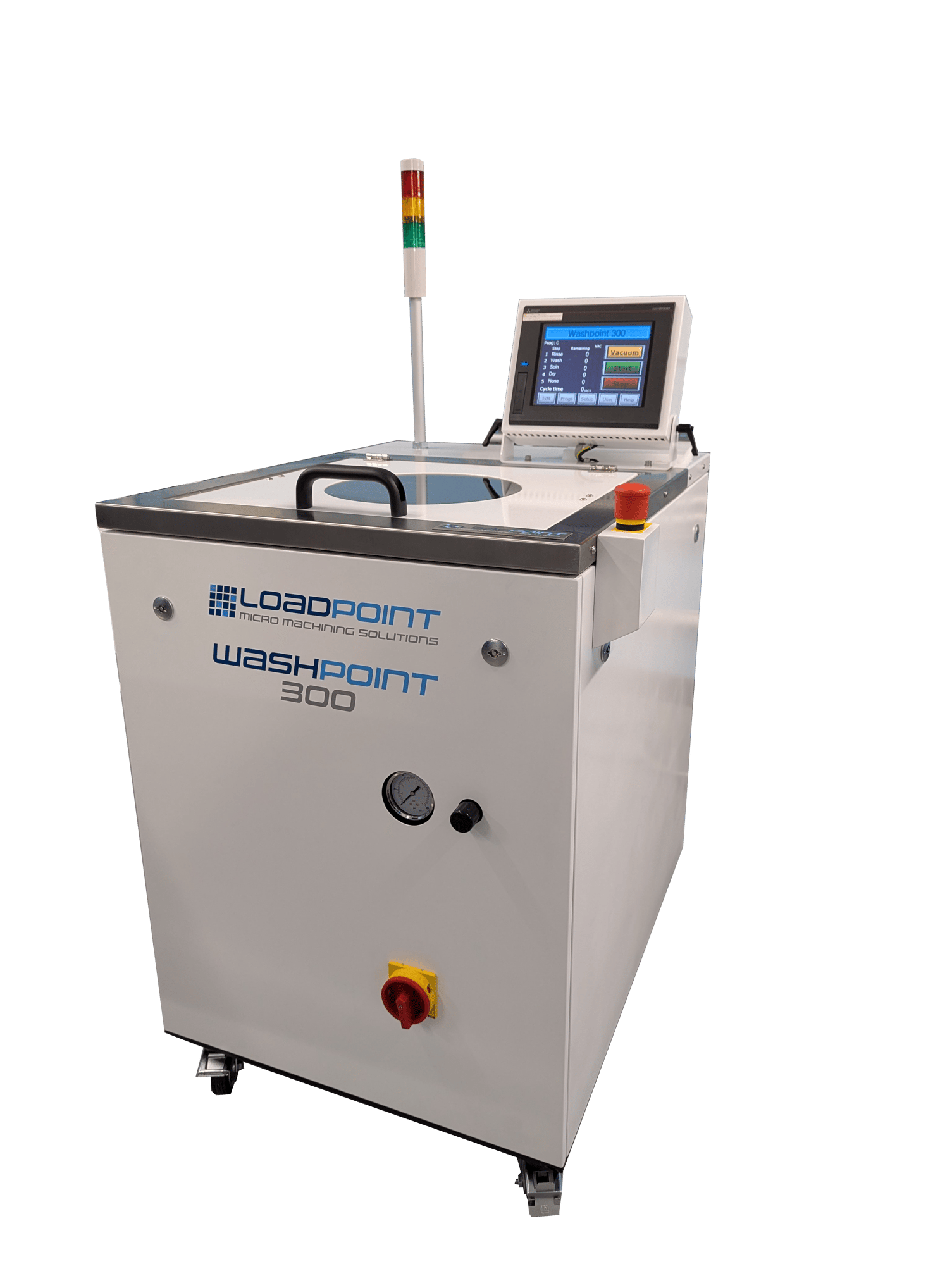

WASHPOINT 300





 The Washpoint 300 is a self -
contained, fully integrated free
standing washing station for
cleaning and drying wafers,
substrate or plates up to 300mm in
diameter following dicing, scribing
or other machining processes.

A flexible washing process allows
all elements of the cleaning and
drying sequence; cycle time, water
pressure, gas pressure and dry heat
output to be easily adjusted
to meet individual process
demands while the compact case
ensures maximum use of work areas

Washpoint-Chuck area
Washpoint Chuck Area.
Washpoint-wash arm
Washpoint Arm.
Loadpoint washpoint 300
Interface Screen
Supplies
Electricity  200/240V AC single phase 6A, 50/60Hz
Air Supply  6.0 bar @ 0.085 cu.m/min, 10mm pipe
Air / Nitrogen  1.0 bar @ 10mm pipe
DI Water  3.0 bar @ 1.0 l/min, 10mm pipe
Mist Extraction  Integral mist extractor and vapour trap, 60mm vent
Drain  Free open drain, not less than 300mm below outlet
Size

620 x 800 x 920mm (w x d x h)
Weight

150 Kilograms





Specification
Construction  Painted stainless steel
Programming  Via touch sensitive screen and PLC unit
Capacity  Up to 300mm, 12” diameter wafers, discs or plates
Chuck  Vacuum diameter 300mm vacuum standard
Optional  Mechanical chuck to suit wide range of ring frames
Spin Speed  100 – 2500 rpm, subject to work type
Water jet  Max. 7 bar (101.5psi) by air driven pump, depending on jet
Gas Jet  Dry air or nitrogen
Regulators  Air/nitrogen pressure, water pressure
Interlocks  Air/nitrogen, Water and Vacuum pressure Safety interlocks and stops as defined by CE standard requirements





Cleaning & Drying Process

 The versatile washing process is adaptable to both volume production and research and development environments. An automatic mode follows a programmed wash and dry sequence to ensure improved production throughput, while a manual mode Detergent injection allows independent control of all elements of the process.

The washing cycle uses filtered high pressure water supplied by a powerful air driven pump to clean the component, and water
may be de-ionised or contain additives depending on application. The drying sequence directs a dry air or nitrogen jet across the
component surface to clear the water particles. An optional inline heater warms the drying gas and component to enhance the effectiveness of the drying process. An integral mist extraction unit draws off spray and vapour to provide a superior cleaning environment.
